PaceSafe LV test with an unexpected beat

Patient

Go to the casebook version optimized for the mobile experience

RESONATE CRT-D in sinus rhythm at 96 bpm with atrial tracking; LV output programmed Auto (PaceSafe LV)

An ambulatory LV threshold test stored by the device and sent through LATITUDE, with an unexpected beat in the middle: is the measured threshold valid?

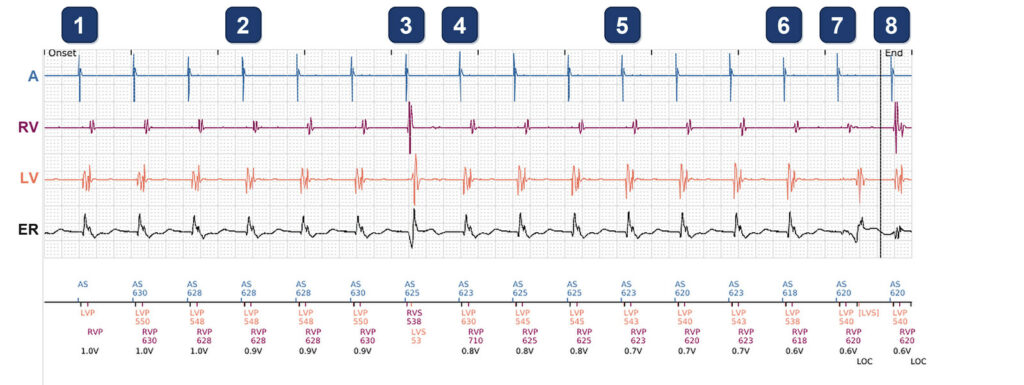

PaceSafe LV test with an unexpected beat: Boston Scientific CRT tracing (EGM)


Loading Viewer…


Trace

  1. Ambulatory PaceSafe LV test in sinus rhythm (AS ≈ 625 ms): an LV test pulse just after each atrial sensed event and a backup RV pace 80 ms later; 1.0 V for 3 beats
  2. 0.9 V for 3 beats, with capture
  3. Premature ventricular beat: RV sensed (RVS 538) about 20 ms after the atrial event and LV sensed 53 ms later, with a different morphology on every channel = PVC; no test pulse on this cycle and no loss of capture counted
  4. The test resumes on the next tracked beat, at the next step: 0.8 V for 3 beats (LVP 630: the LV interval restarts from the PVC)
  5. 0.7 V for 3 beats, with capture
  6. 0.6 V: the first beat still captures
  7. Loss of capture: the evoked response changes and the LV is activated late ([LVS])
  8. Second loss of capture at 0.6 V: end of the test; the LV threshold is 0.7 V

Comments

A PVC during an ambulatory PaceSafe LV test: the device skips that cycle, counts no loss of capture and goes on; the LV threshold, 0.7 V, is valid

Points to remember

  • A PVC, or any sensed ventricular beat, during PaceSafe LV only cancels that test cycle: no test pulse, no loss of capture counted, and the step-down resumes on the next tracked beat
  • The test stops only after 2 losses of capture at one step, so a single odd beat cannot fake a high threshold: the threshold measured here, 0.7 V, can be trusted
  • Tell a PVC from a loss of capture on the markers and the EGM: a PVC is sensed (RVS, then LVS), with a new shape on every channel; a loss of capture is an LV pace (LVP) followed by a changed evoked response and a late LV activation ([LVS])

Take home message

An odd beat in an LV threshold test is not always a loss of capture: if its markers show it was sensed (RVS, LVS), it is a PVC that the test simply skips, and the threshold stays valid
