End-of-episode criteria following an electric shock - Resonate CRT



Patient

  • 75-year-old man with ischemic cardiomyopathy; implanted with a Resonate triple-chamber defibrillator



Summary

  • episode classified in VF zone
  • 3 shocks of maximum output



EGM layout

  1. atrial and bi-ventricular pacing
  2. onset of rapid, polymorphic ventricular arrhythmia (VF)
  3. start of VF zone duration (5 seconds)
  4. end of duration and start of capacitor charging
  5. end of charge and 41 Joule electric shock delivered on the second fast cycle (synchronized to the R wave)
  6. VF restarts immediately
  7. redetection criterion 8/10 verified (1 VT cycle, 7 VF cycles) for VT zone (start of duration for VT zone)
  8. redetection criterion 8/10 verified for VF zone (start of post-shock duration for non-programmable VF zone of 1 second)
  9. end of duration set at 1 second for VT zone (V-Dur); post-shock duration of VF zone is still active
  10. end of post-shock time for VF zone (V-Detect) and capacitor charging
  11. the shock is delivered at the end of the charge after the 500 ms post-shock window; when the shock is delivered, a 30-second period begins during which the device seeks to validate the 8/10 criterion.
  12. effective shock
  13. arrhythmia restarts before the end-of-episode criterion (less than 30 seconds after shock); on this cycle, criterion 8/10 verified; as the episode is not over, the device considers this to be the second shock and the post-shock duration of 1 second applies
  14. end of post-shock period and capacitor charging
  15. second shock
  16. arrhythmia termination
  17. interruption of the trace
  18. restart of ventricular arrhythmia
  19. V-Epsd End marker (end of episode) since it has been 30 seconds since the shock was delivered and criterion 8/10 has not been satisfied; VT and VF counters reset to 0
  20. 8/10 criterion verified for VT zone (1 VT cycle + 7 VF cycles from end-of-episode marker); start of initial VT zone duration
  21. criterion 8/10 verified for VF zone; start of initial duration of VF zone
  22. end of duration for VF zone; ATP Quick Convert (the device considers this to be the first therapy of a new episode)
  23. inefficient ATP, capacitor charging and electric shock
  24. immediate recurrence of arrhythmia
  25. end of 1 second post-shock duration in VF zone
  26. shock with VF termination

Take home message

  • this patient presented with multiple episodes of VF (in addition to those on this tracing), which makes it possible to detail the operation of the device once the shock has been delivered
  • when a shock has been delivered, a non-programmable 30-second timer starts; if during these 30 seconds, criterion 8/10 is verified, the device considers that it is the same episode, the post-shock duration applies (1 second in VF zone) and the next therapy is delivered (shock number 2 if it was previously shock number 1); if during these 30 seconds, criterion 8/10 is not verified, the device considers the episode to be over; if the arrhythmia then recurs, the device considers it to be a new episode, the initial duration is applied (today’s standard programming of a 5-second duration in the VF zone) and the first therapy in the VF zone is delivered.
  • this operation can be problematic when the patient experiences effective shocks but relatively early recurrences of VF (less than 30 seconds); in fact, the post-shock duration of the VF zone is applied (short and non-programmable by 1 second) which leaves less time for spontaneous termination; similarly, therapies carry a risk (moderate as 8 electric shocks can be delivered for the same VF episode) that the device exhausts all therapies and a new episode is not treated

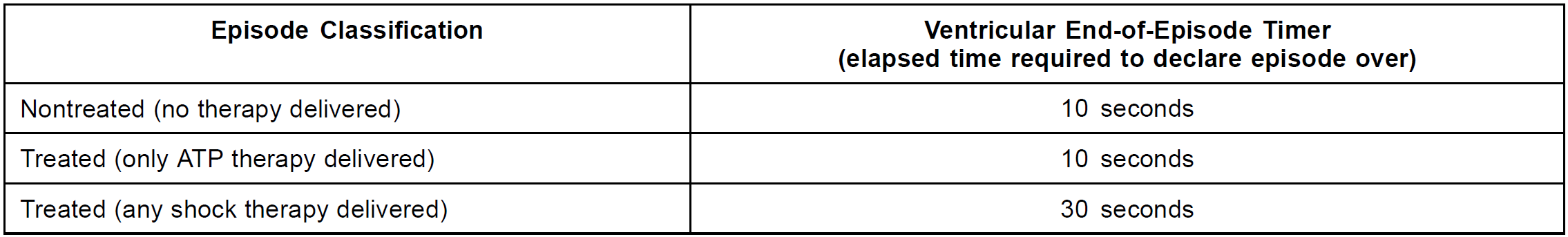

This figure shows the various (non-programmable) timers used to define the end of the episode; after an electric shock, the end-of-episode marker appears if, after 30 seconds, criterion 8/10 has not been verified.
