Chapter 4 · Oversensing · Case 2

Surgical intervention and VF at the time of reperfusion

Patient and episode

Patient 1

  • Male with ischaemic cardiomyopathy, implanted with a Momentum triple-chamber defibrillator; aortic valve replacement surgery; trace recorded during the procedure

Summary

  • Detection of an episode in the VF zone
  • No therapy delivered (device not programmed for monitoring + treatment)

Patient 2

  • Male implanted with an Autogen triple-chamber defibrillator; cardiac surgery (coronary bypass); trace recorded during the procedure

Summary

  • Detection of an episode in the VF zone
  • Electric shock of 41 Joules

The recording

Tap a number on the trace, or an entry in the list below

Trace 1

Boston Scientific ICD electrogram, segment 1 of 2 — Surgical intervention and VF at the time of reperfusion
Boston Scientific ICD electrogram, segment 2 of 2 — Surgical intervention and VF at the time of reperfusion

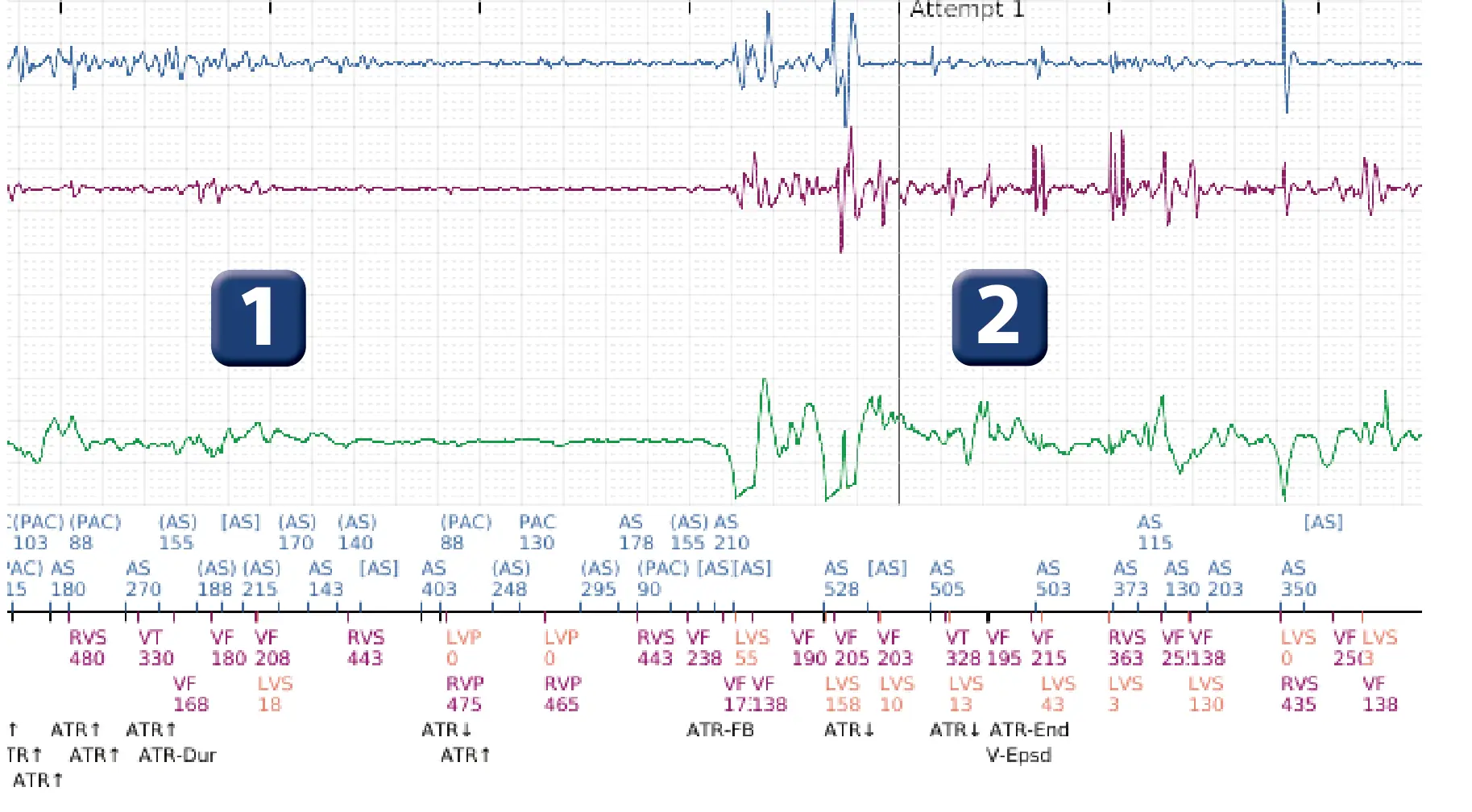

  1. No atrial or ventricular activity visible on the 3 channels; baseline interference explains the sensing of intermittent signals on the atrial and ventricular channels

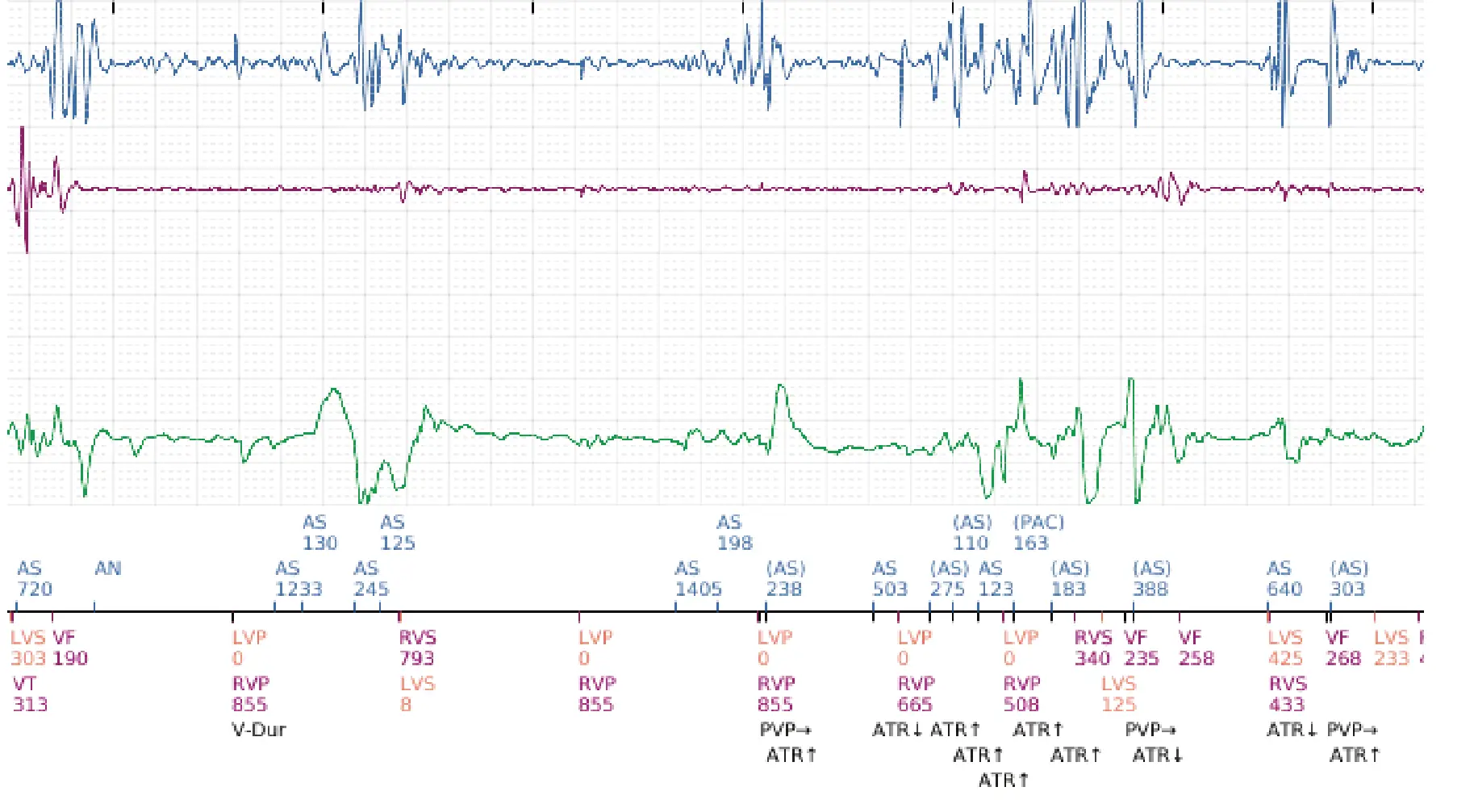

  2. Simultaneous sensing on the 3 channels (atrial, ventricular, shock) of fast, chaotic signals of variable amplitude and morphology (classified as AF, VF) when electrocautery is used by the surgeon.

Trace 2

Boston Scientific ICD electrogram, segment 1 of 5 — Surgical intervention and VF at the time of reperfusion
Boston Scientific ICD electrogram, segment 2 of 5 — Surgical intervention and VF at the time of reperfusion
Boston Scientific ICD electrogram, segment 3 of 5 — Surgical intervention and VF at the time of reperfusion
Boston Scientific ICD electrogram, segment 4 of 5 — Surgical intervention and VF at the time of reperfusion
Boston Scientific ICD electrogram, segment 5 of 5 — Surgical intervention and VF at the time of reperfusion

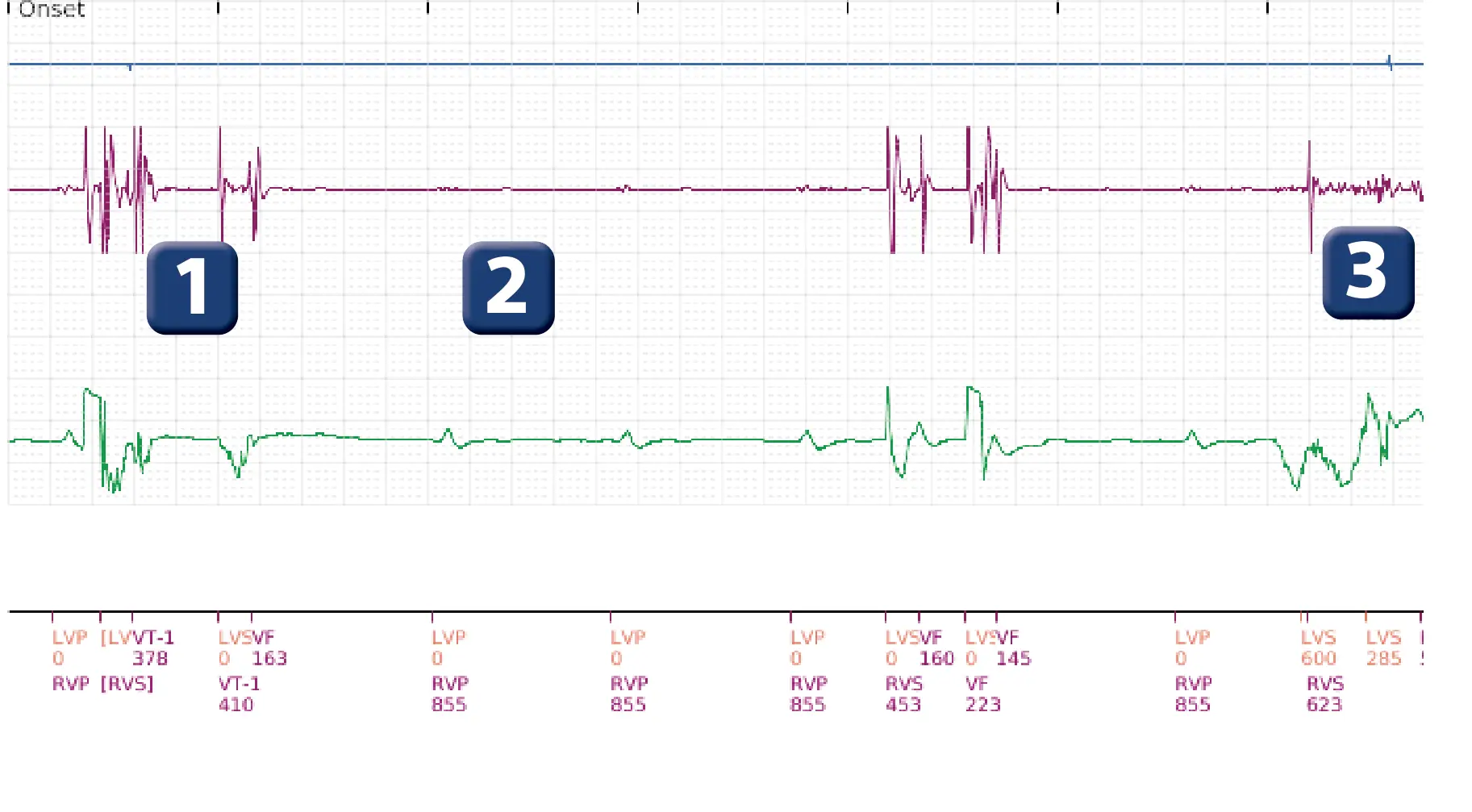

  1. Simultaneous detection of fast, chaotic signals of variable amplitudes and morphology on the ventricular and shock channels (electrocautery)

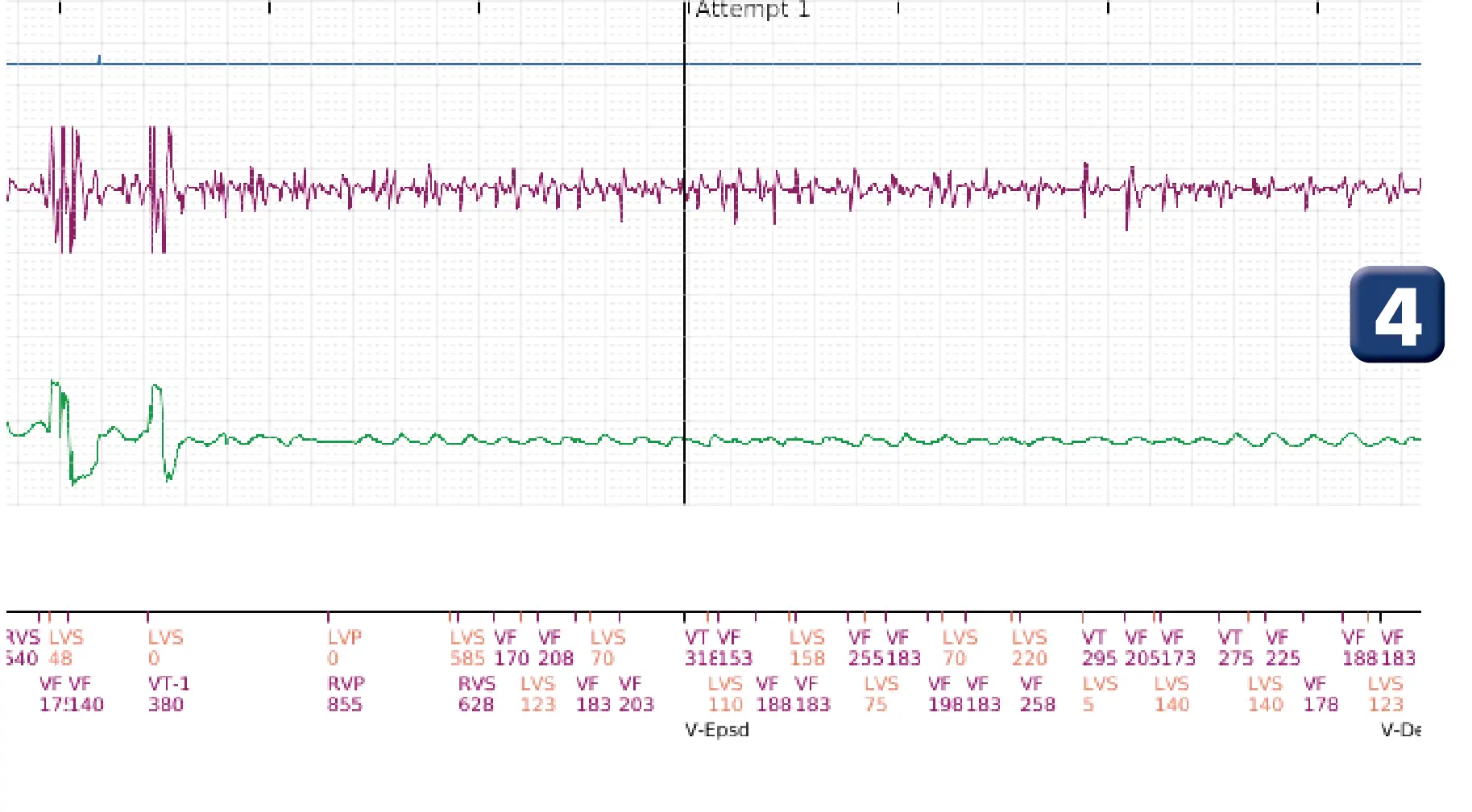

  2. End of oversensing
  3. Onset of a very rapid, low voltage ventricular arrhythmia; imperfect ventricular sensing

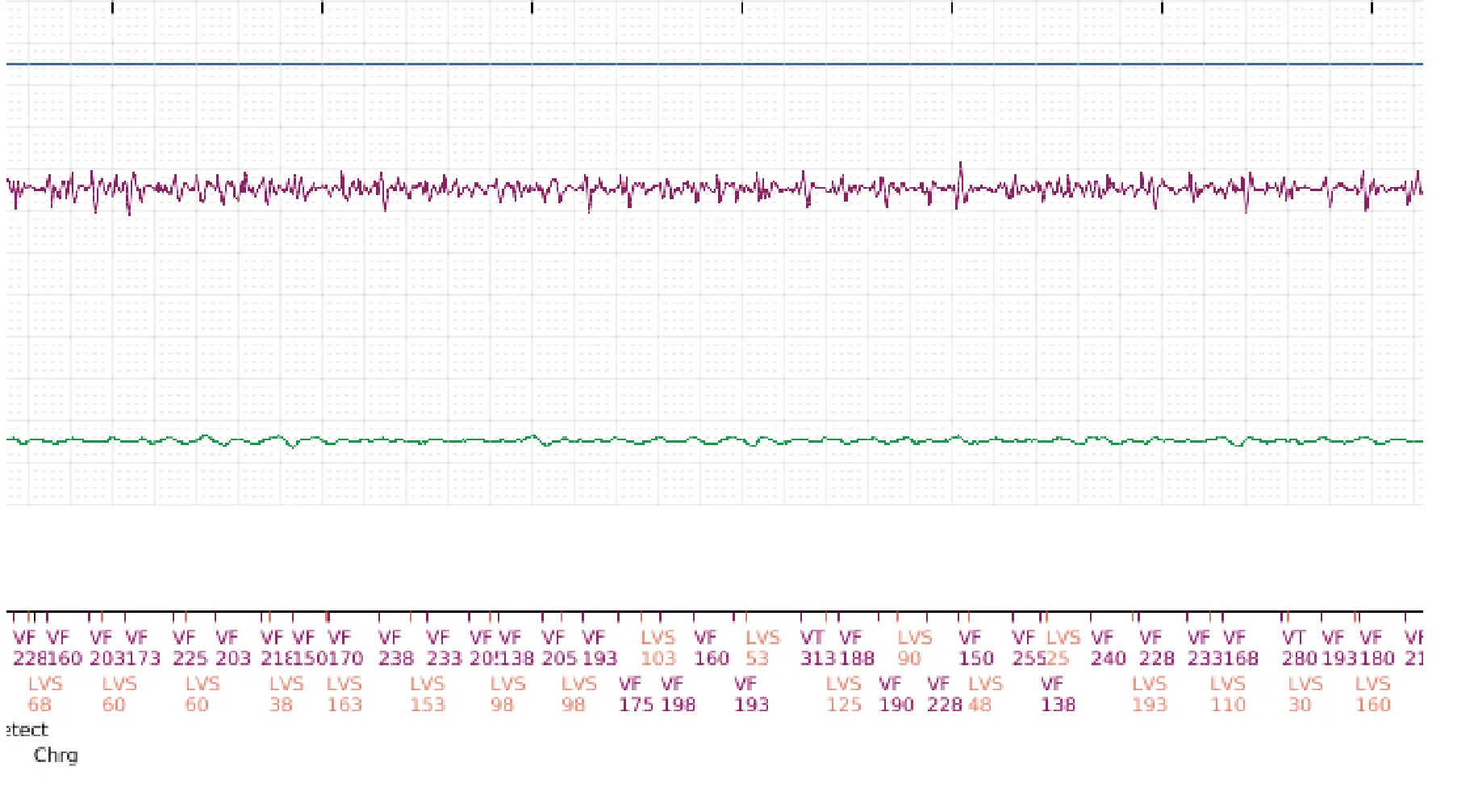

  4. Detection of a VF episode and capacitor charging

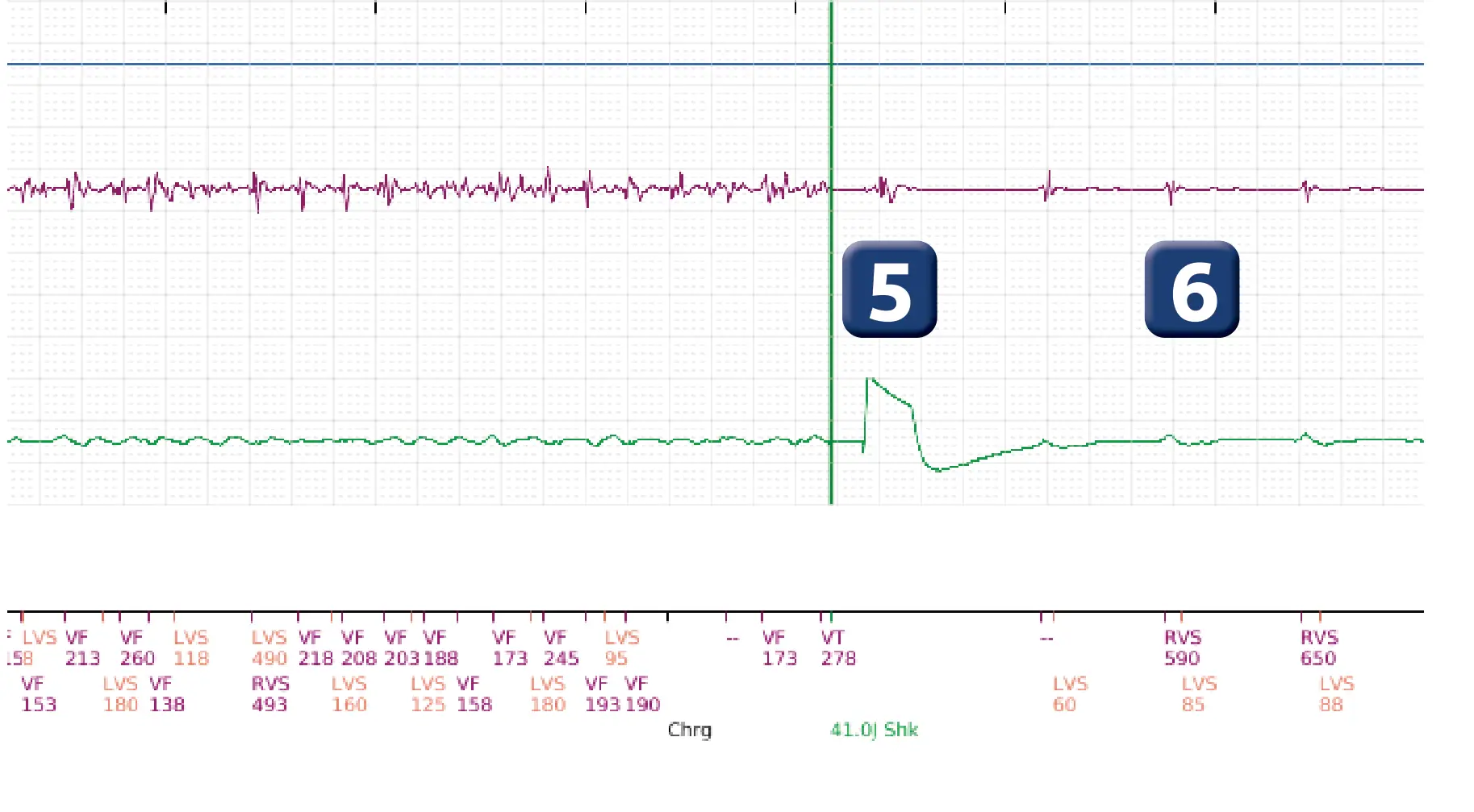

  5. Electric shock of 41 Joules

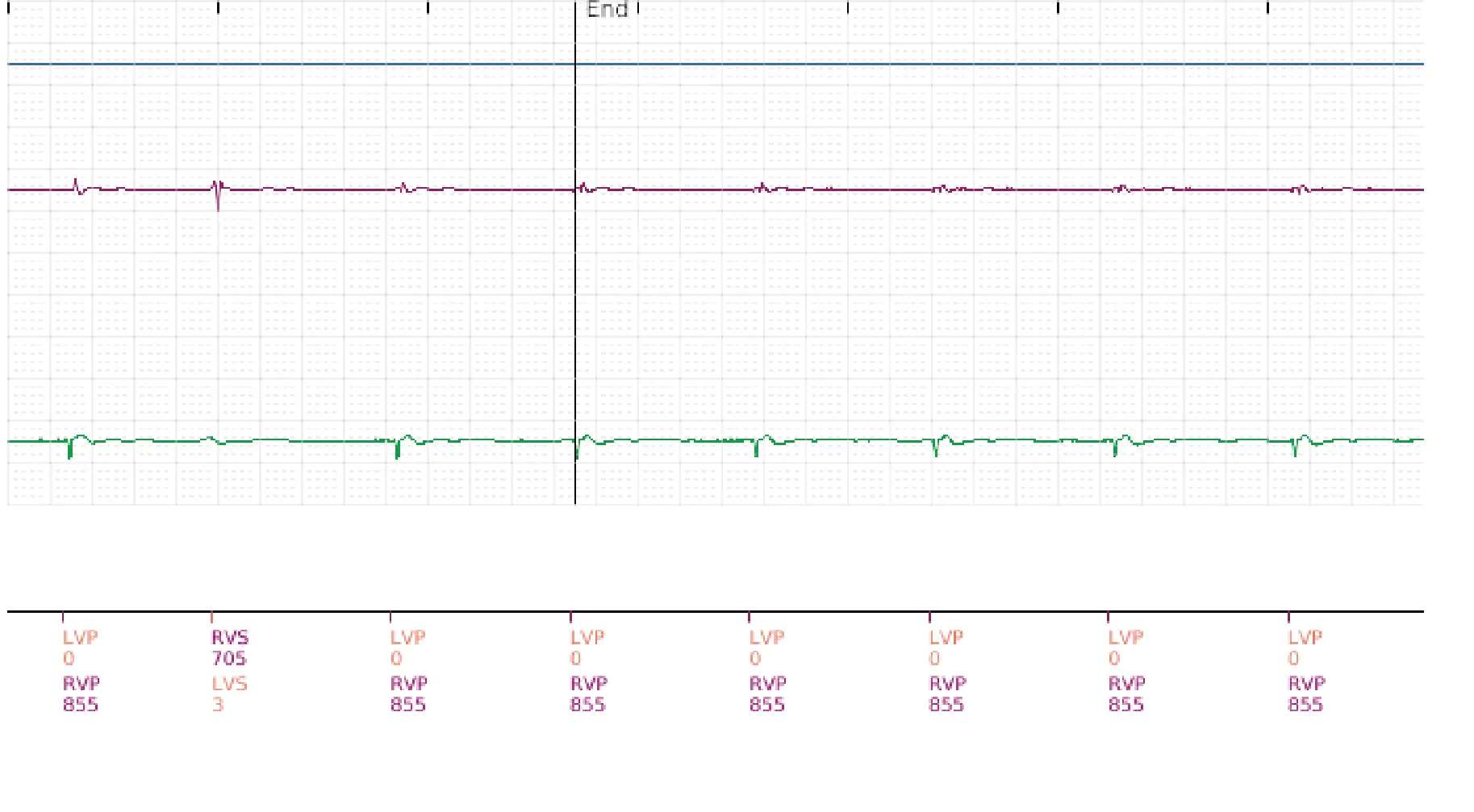

  6. Termination arrhythmia

Points to remember

  • These 2 patients underwent cardiac surgery with extra-corporeal circulation; for the first patient, the Tachy Mode was programmed to monitor only during the procedure, for the second to monitoring + treatment; it is usual to program the Tachy Mode to off, with any bradycardia or tachycardia occurring during the procedure being managed by temporary pacing or external cardioversion respectively.
  • The first tracing shows a characteristic appearance of cardioplegia (asystole despite the pacing delivered by the defibrillator); this technique, which aims to stop the activity of the heart during the operation, is carried out by injecting a liquid very rich in potassium directly into the coronary arteries; this makes it possible to carry out the surgical procedure on immobile organs; the first tracing shows, overlying this flat background trace, the oversensing of characteristic signals related to the use of electrocautery by the surgeon
  • The second trace shows the detection and termination of a true VF episode by a shock delivered by the device; this arrhythmia occurs during reperfusion at the end of the operation, which is relatively frequent and is usually managed by the anesthetic team with external defibrillation, the implantable device having been deprogrammed before the operation.

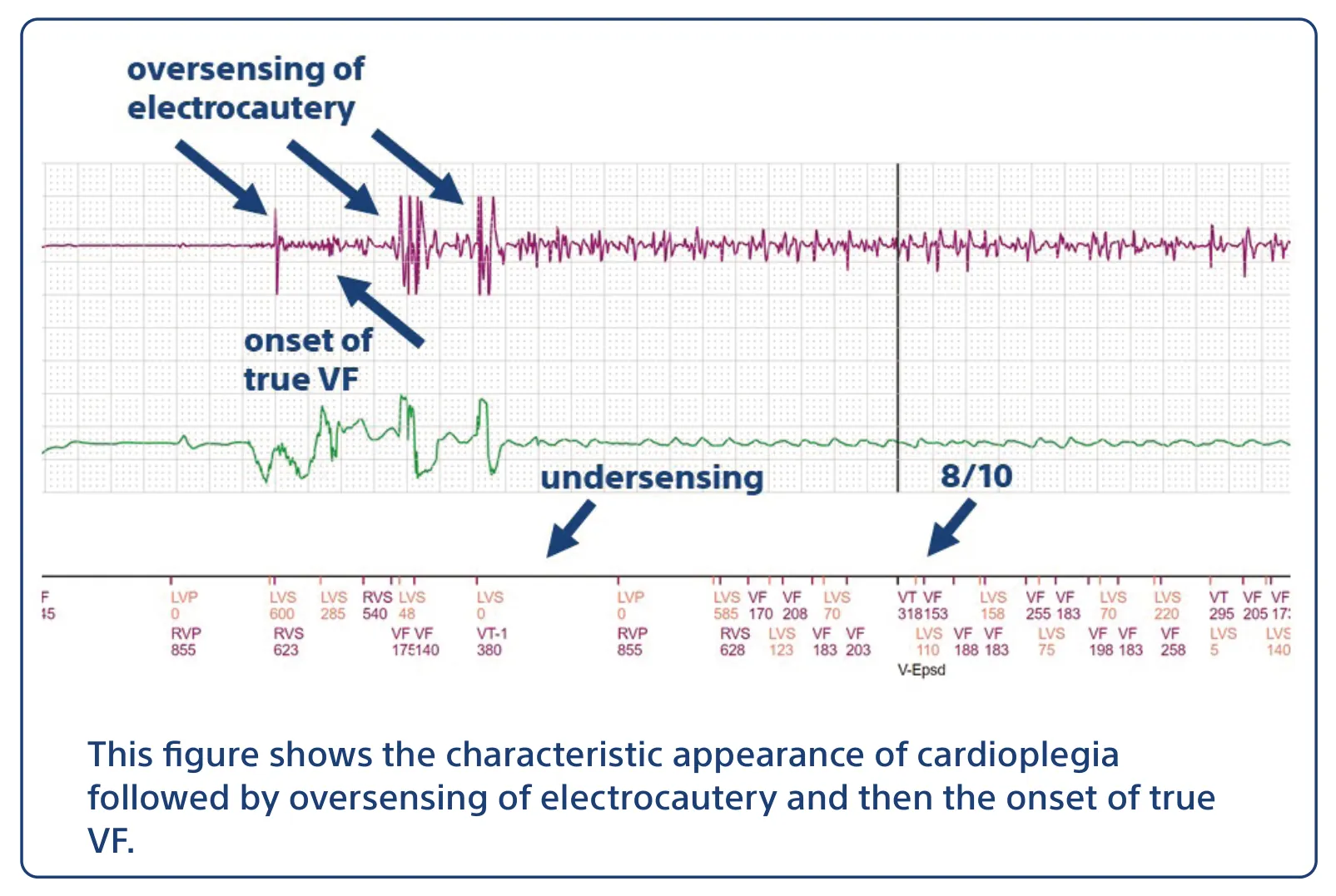

This figure shows the characteristic appearance of cardioplegia followed by oversensing of electrocautery and then the onset of true VF.
This figure shows the characteristic appearance of cardioplegia followed by oversensing of electrocautery and then the onset of true VF.
